Settings in EasyVFR 4
- Connect Your Device:
- Ensure your EasyVFR 4 device is connected to the Wi-Fi network of your traffic receiver.
- Access FLARM Settings in EasyVFR 4 app:
- Open the FLARM settings in EasyVFR 4.
- Tap the Status dot (green/orange/red button at the bottom right) to open the Status card.

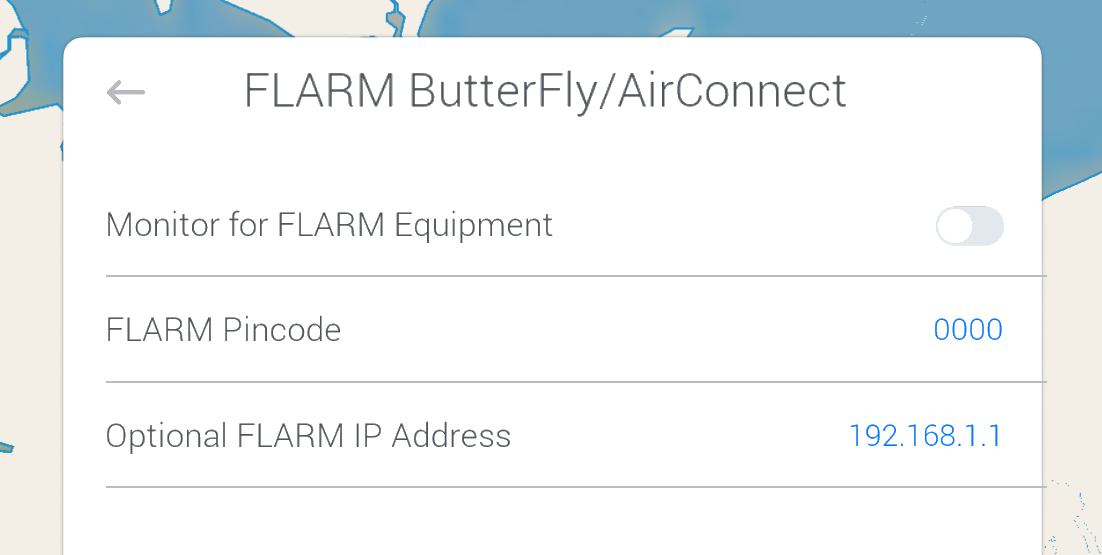

- Navigate to the Traffic card and scroll down to find [FLARM Butterfly/AIR Connect].
- Enable Monitoring:
- Activate the [Monitor for FLARM Equipment] option.
- Optionally, set the pin code for your receiver. If no pin code is required, use
0000
. - Set the IP address of your traffic receiver. Refer to the sections below to find or configure these settings.
Important Note: Only One App Can Connect at a Time
Only one app on a device can use a TCP connection to a traffic receiver at any given time. For instance, if EasyVFR 4 is connected, you cannot connect another EFB app simultaneously, and vice versa.
Common Default Settings
Air Avionics - AIR Connect and Butterfly
- Firmware Current Version:
- IP:
192.168.1.1
- PORT:
2000
(EasyVFR scans this automatically) - Pin code: Not required (set
0000
in EasyVFR)
- IP:
- Older Firmware:
- Refer to page 14 of the manual for the IP and how to find or calculate the pin code. (Pin code = device serial number + 3642)
- Manufacturer's Manual: AIR Connect Manual – AIR Avionics (air-avionics.com)
FLARM - Power FLARM Fusion
- Firmware on Current Version:
- IP:
10.10.10.10
- PORT:
2000
(EasyVFR scans this automatically) - Pin code: Not required (set
0000
in EasyVFR)
- IP:
- Manufacturer's Manual: See page 35 of FTD-078-PowerFLARM-Fusion-User-and-Maintenance-Manual.pdf
Other Receivers
For other models, follow similar steps. Ensure you have the latest firmware and consult the user manual for specific IP and port settings.
- Generic Settings:
- IP: Often '
192.168.x.x'
or '10.0.x.x' or '1.2.3.4
' - PORT: Typically
2000
- Pin code: Usually
0000 or 1234
unless otherwise specified.
- IP: Often '
Lookup the IP Address in Your Android/iOS Wi-Fi Settings
To connect EasyVFR 4 to your traffic receiver over TCP/IP, you need to know the IP address assigned to the receiver. Follow these steps on your device to find it:
On iOS Devices:
-
Ensure Connection:
- Make sure your EasyVFR 4 device is connected to the Wi-Fi network of your traffic receiver.
-
Open Wi-Fi Settings:
- Go to
Settings
on your iOS device. - Select
Wi-Fi
.
- Go to
-
Find IP Address:
- Tap the small
(i)
icon next to your active Wi-Fi connection. - Scroll down and note the IP address listed under
Router
.
- Tap the small
On Default Android Devices:
-
Ensure Connection:
- Make sure your EasyVFR 4 device is connected to the Wi-Fi network of your traffic receiver.
-
Open Wi-Fi Settings:
- Go to
Settings
. - Select
Network & Internet
. - Tap
Internet
.
- Go to
-
Find IP Address:
- Tap the settings icon next to your connected Wi-Fi network.
- Scroll down and note the IP address listed as
Gateway
orRouter
.
On Samsung Devices:
-
Ensure Connection:
- Make sure your EasyVFR 4 device is connected to the Wi-Fi network of your traffic receiver.
-
Open Wi-Fi Settings:
- Go to
Settings
. - Select
Connections
. - Tap
Wi-Fi
.
- Go to
-
Find IP Address:
- Your currently connected network is visible, with a settings icon on the right side. Tap this settings icon.
- Select the option
Manage Router
. - This opens a web browser. The IP address can be found in the address bar as the gateway or router IP.
These steps will help you identify the IP address of your traffic receiver, which you can then use in EasyVFR 4 settings to establish a TCP/IP connection.
Conclusion
By following these steps, you can successfully connect and configure your traffic receiver with EasyVFR 4 or other compatible apps. For detailed information specific to your receiver model, refer to the manufacturer's manual or user documentation. If you encounter any issues, consult customer support for further assistance.
